SEAT 50

Polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 15000 m3/h, the inlet dimension of 600mm and outlet of 500mm. Backward centrifugal type impeller made of injected molded PPH with a patented process. Delivered with a protection plate around the housing, metal stand, weather protection cover and three phase motor with a start up by frequency inverter.

Basic measurements of electric fan

Parameter Calibre
A 500
D 600
B 765
C 550
E 1315
F 740
G 660
H 610
I 1350
I-LG90 1505
K+F 1255
K 515
L 400
M 715
N 620
U 1020

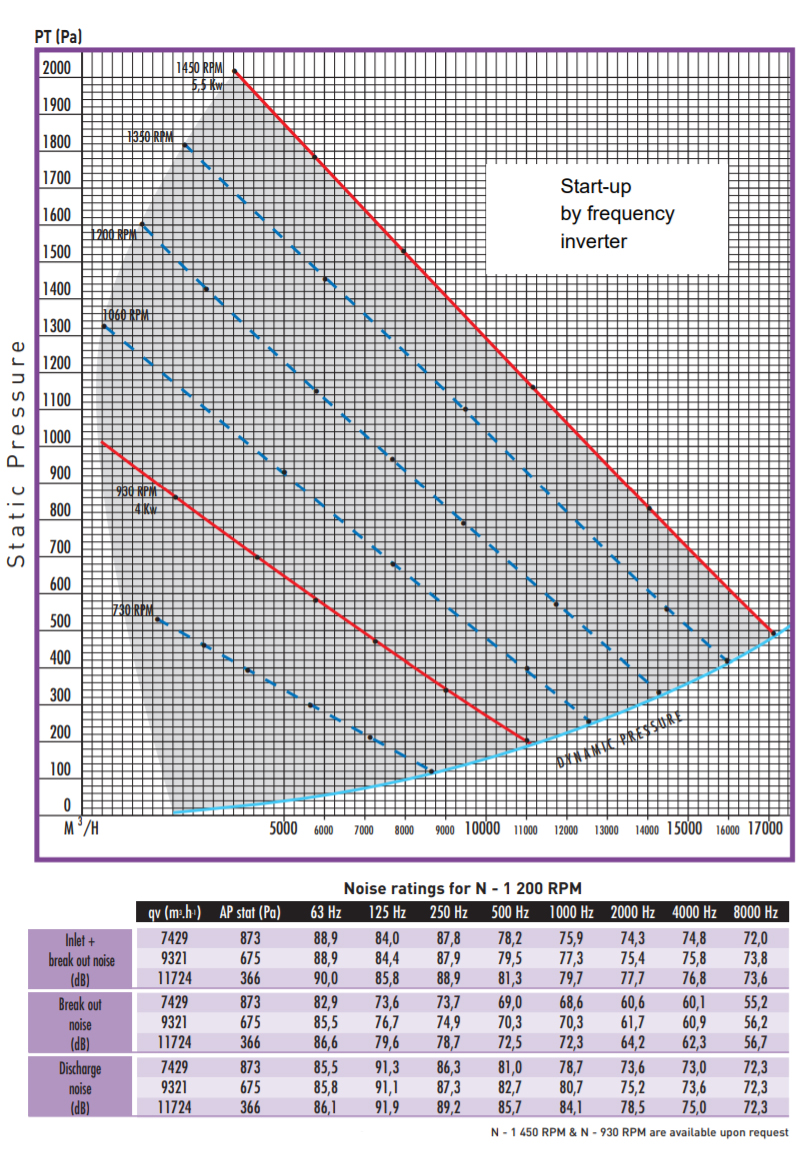

Parameters of performance

Fans configurations

Handings are viewed from inlet side
