SEAT 25

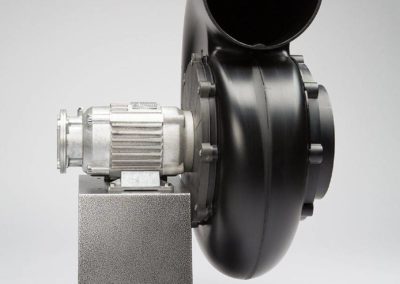

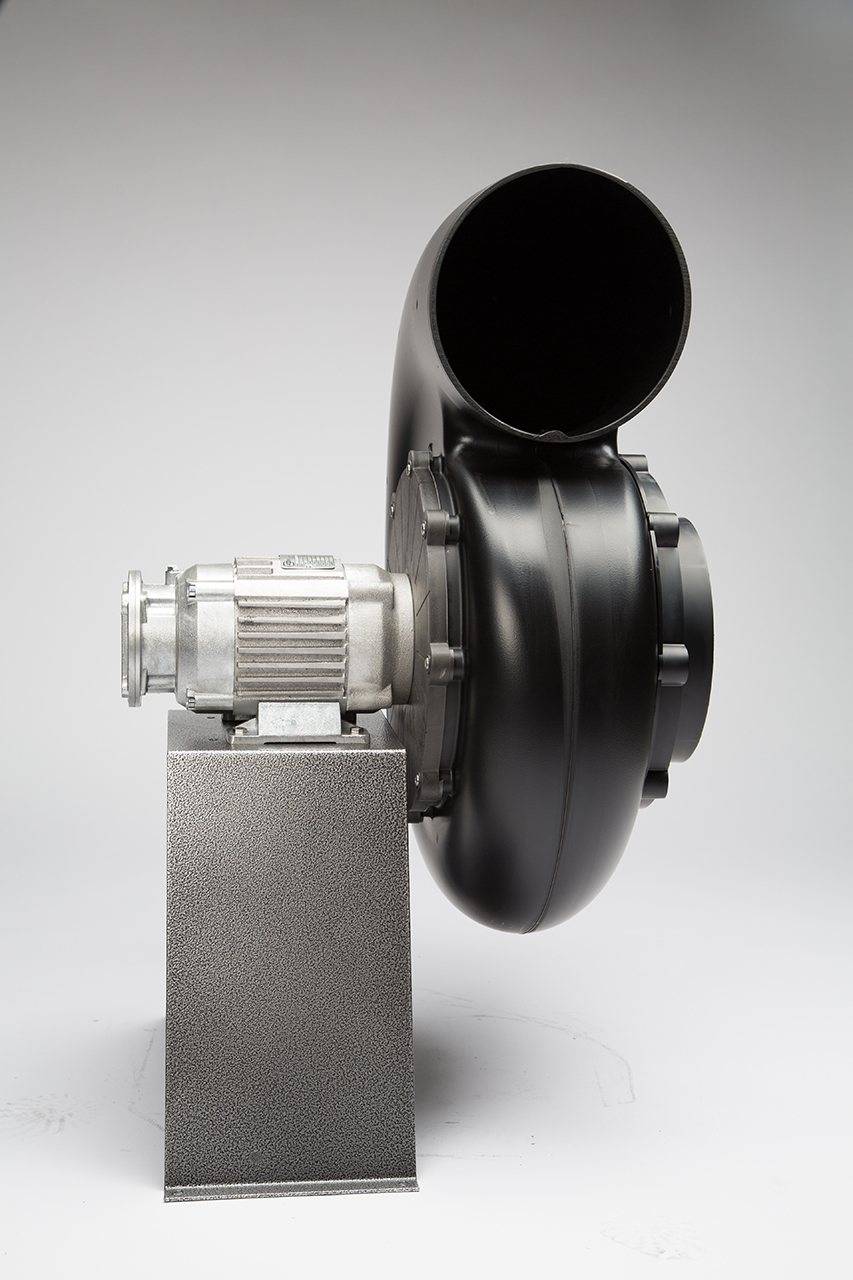

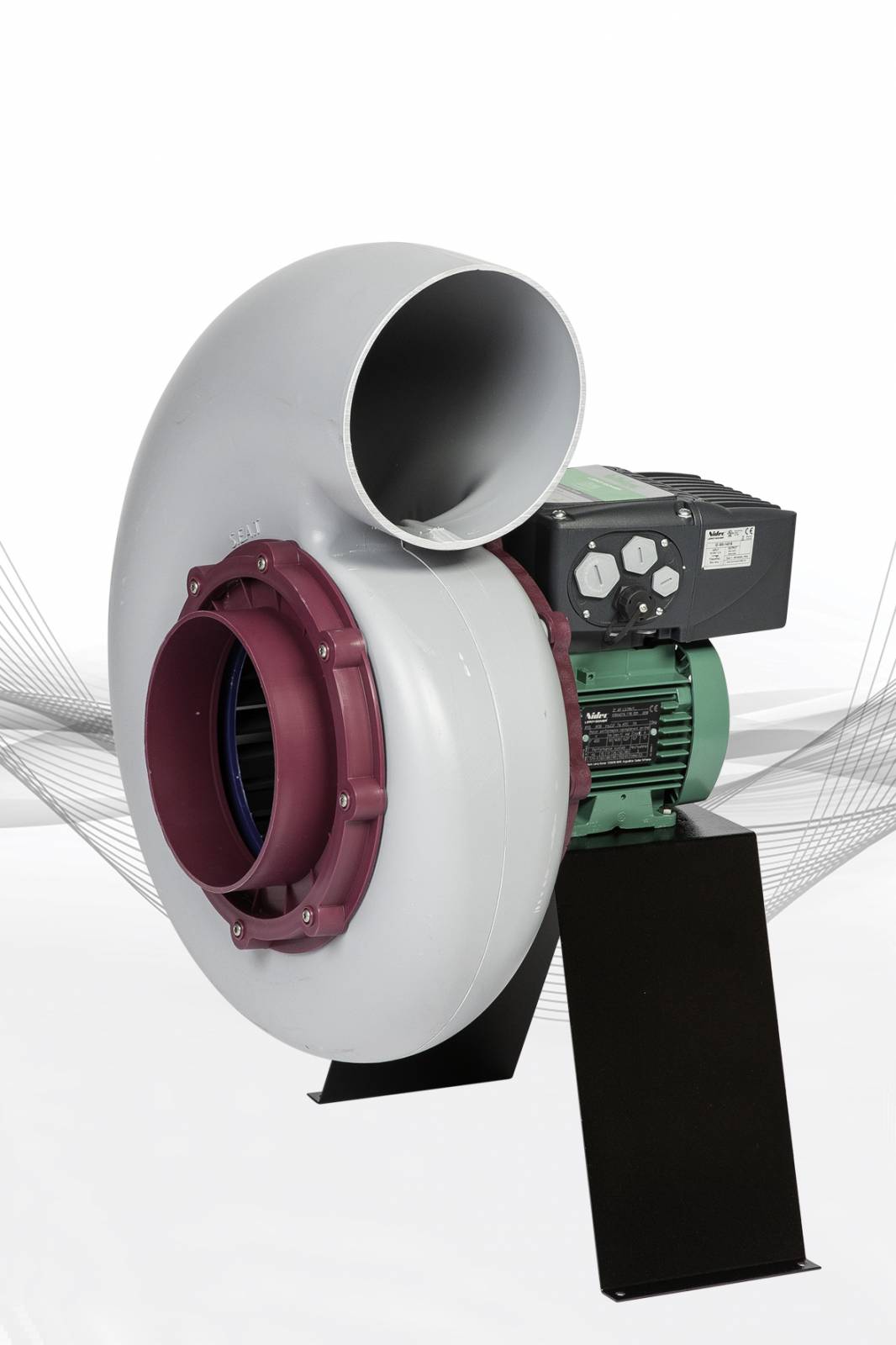

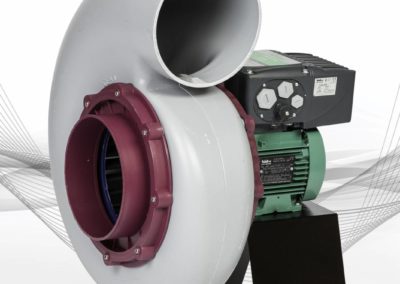

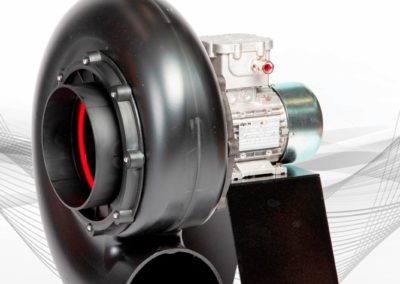

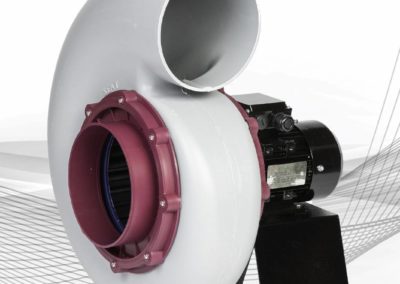

Plastic electric fan SEAT 25 for extraction of air which contains dangerous chemical substances.

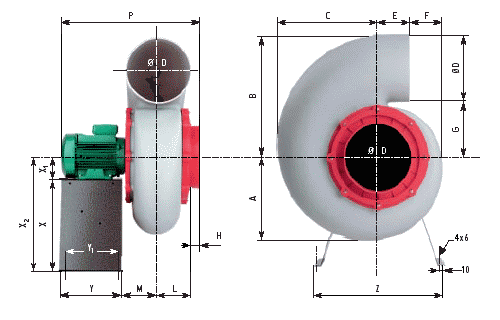

Basic measurements of electric fan

Parameter	Calibre
A	248
B	365
C	310
D	200
E	103
F	92
G	165
H	35
L	95
M	105
P	455, 415, 455, 515*
Y	180
Y1	160
Z	420
X	300
X1	63, 71, 80, 90*
X2	363, 371, 380, 390*

Fan weight: 4,6 kg

Motor weight: 5,7 – 15,7 kg*

* according to type of motor

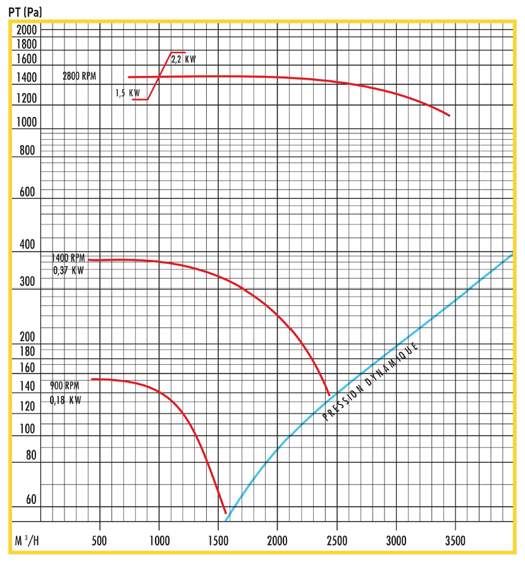

Parameters of performance

Fans configurations
