JET 25

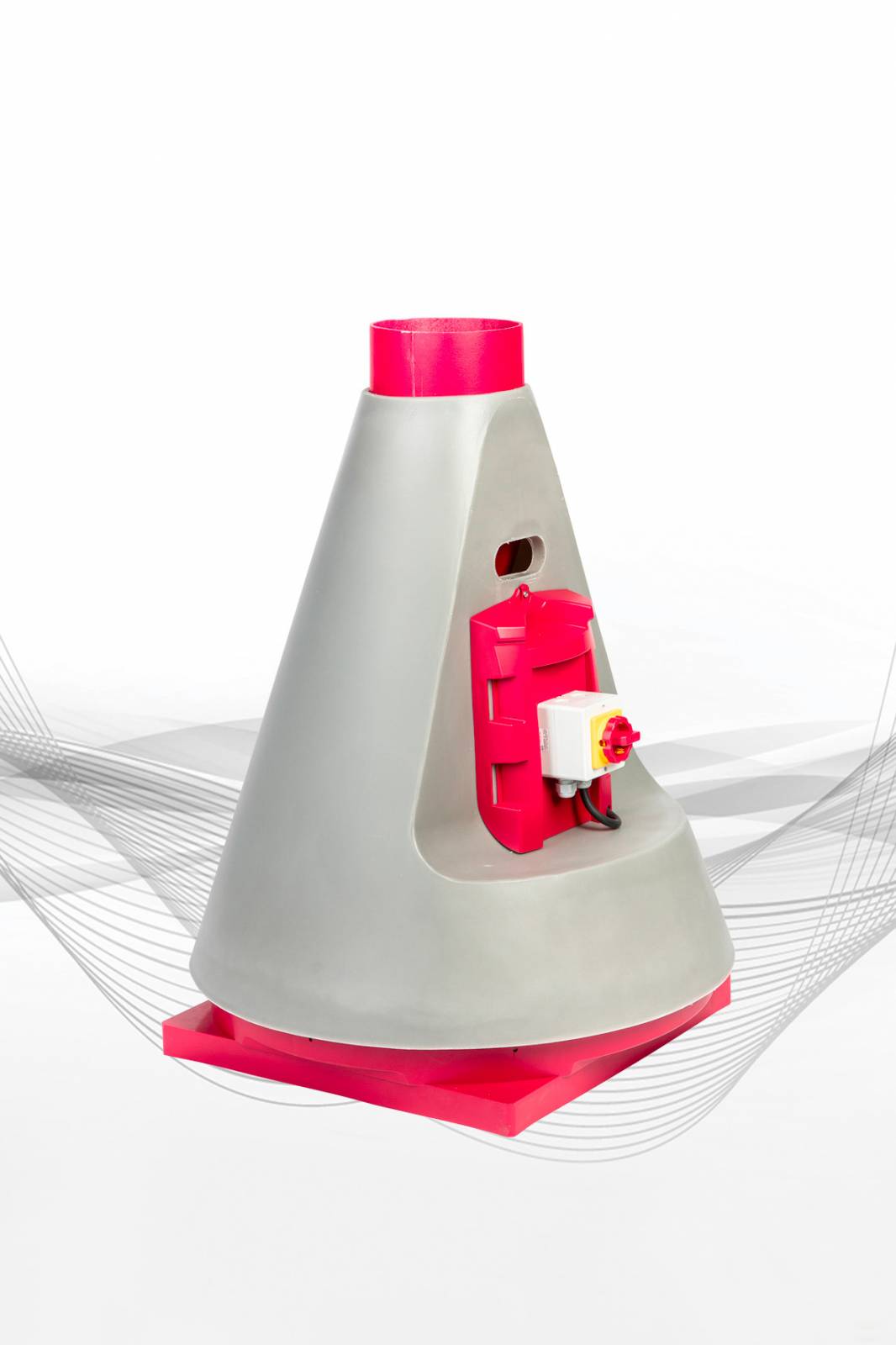

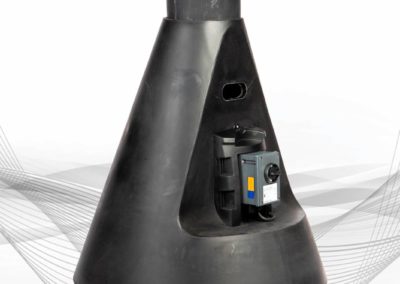

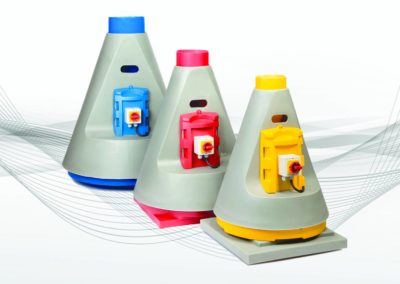

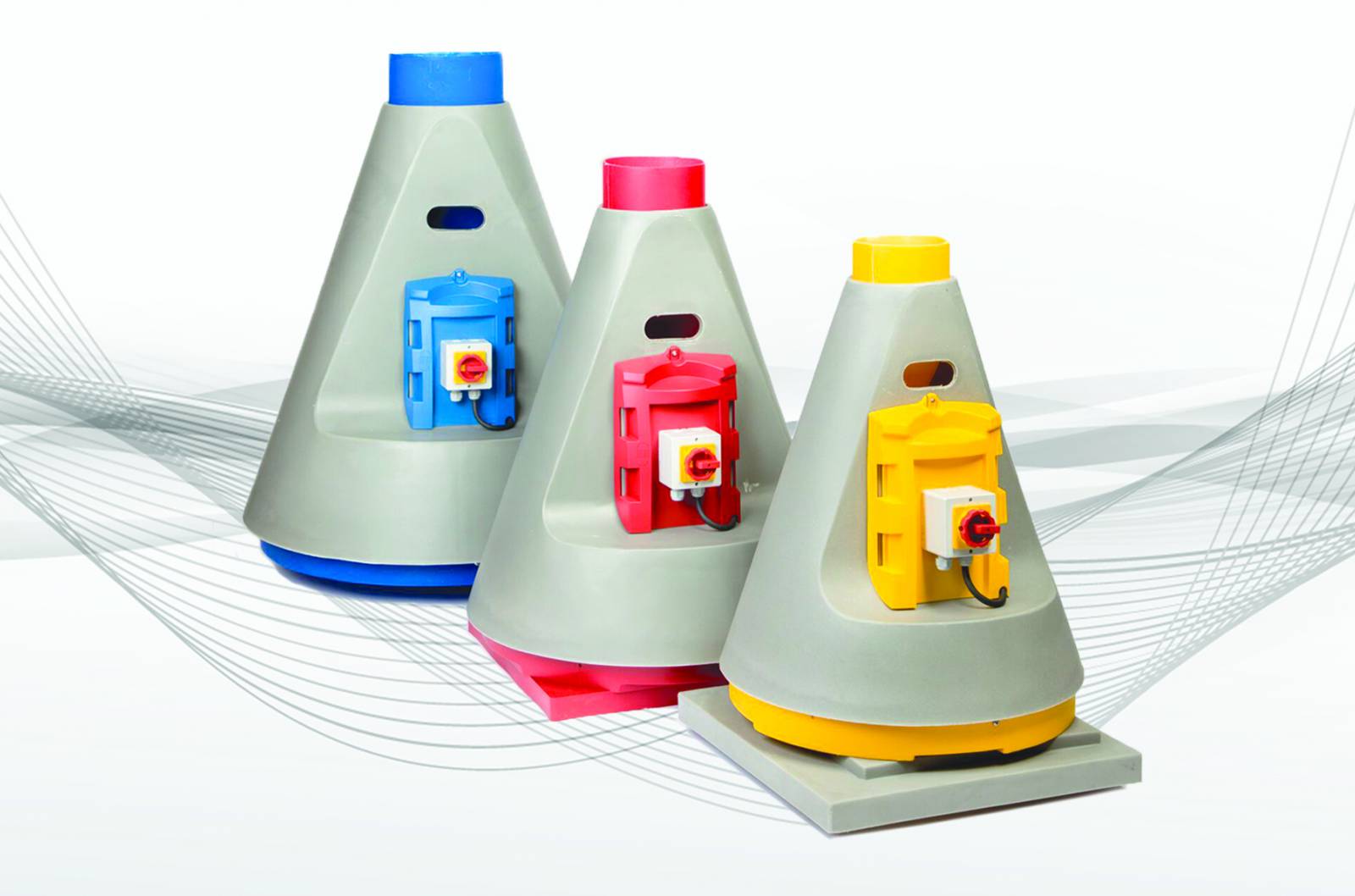

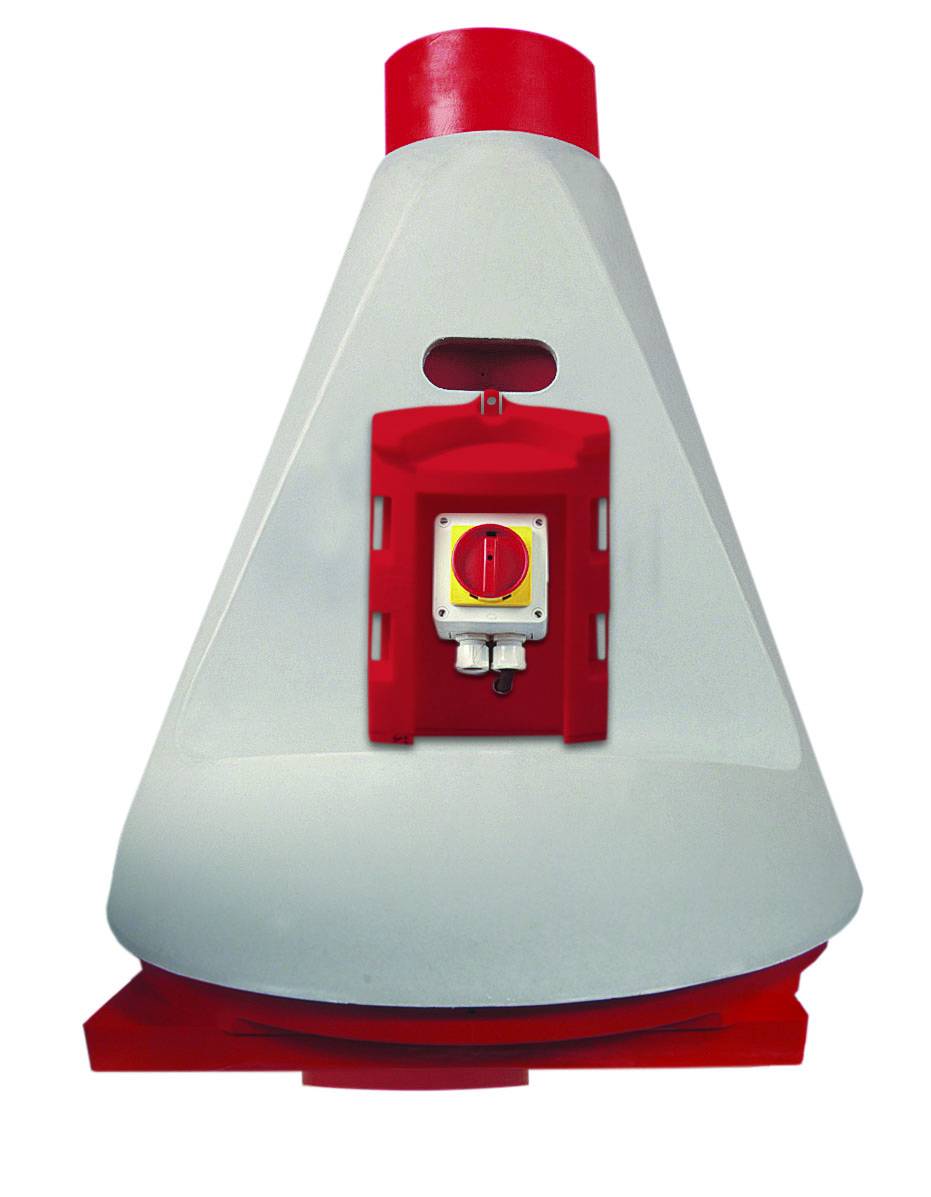

Plastic electric fan JET 25 for extraction of air which contains dangerous chemical substances

Installation of electric fan

There are two means of installing this fan:

  • method inline directly into ducting (by means of metal wall bracket), or as

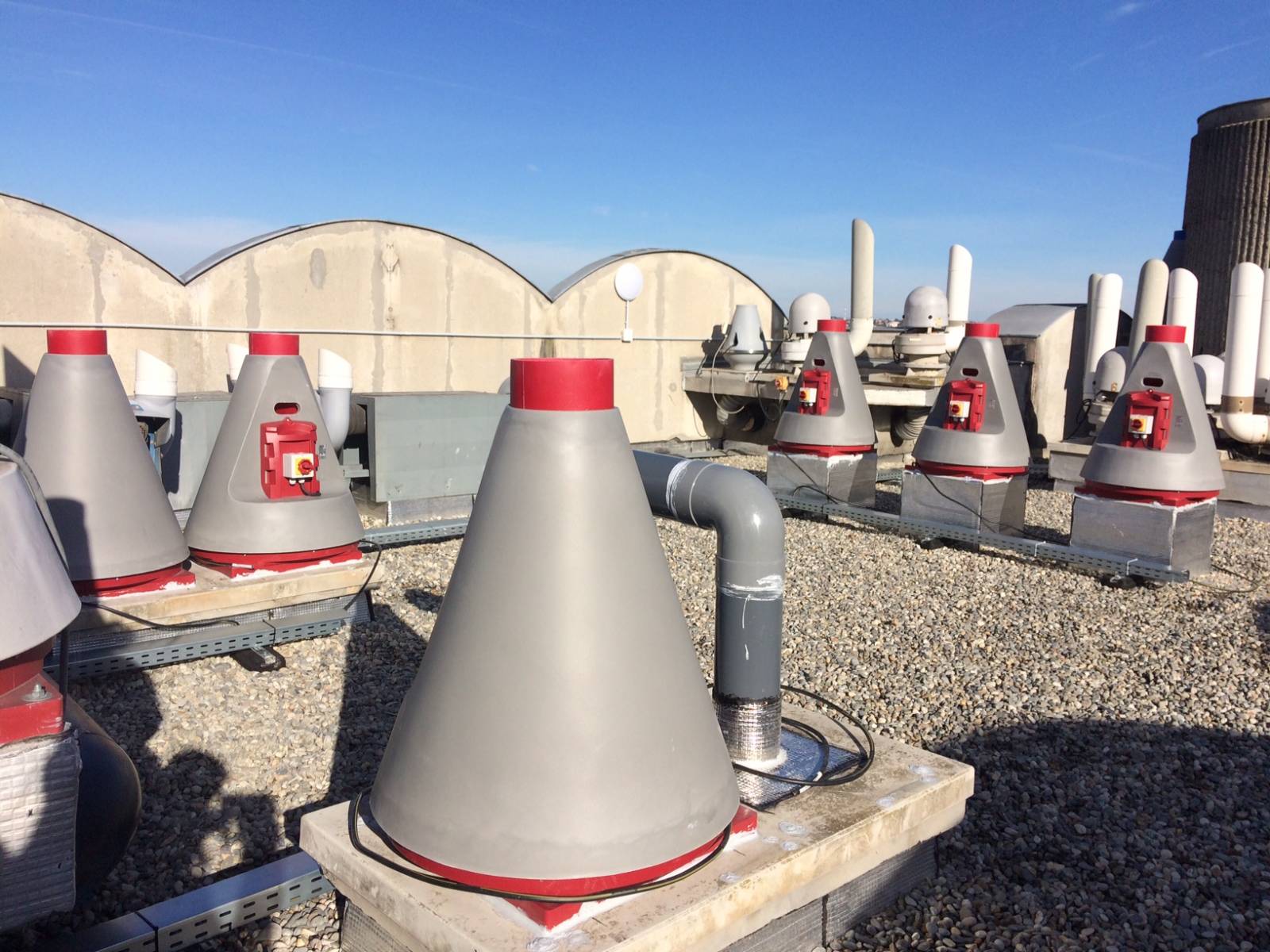

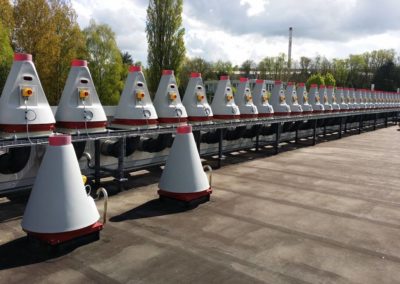

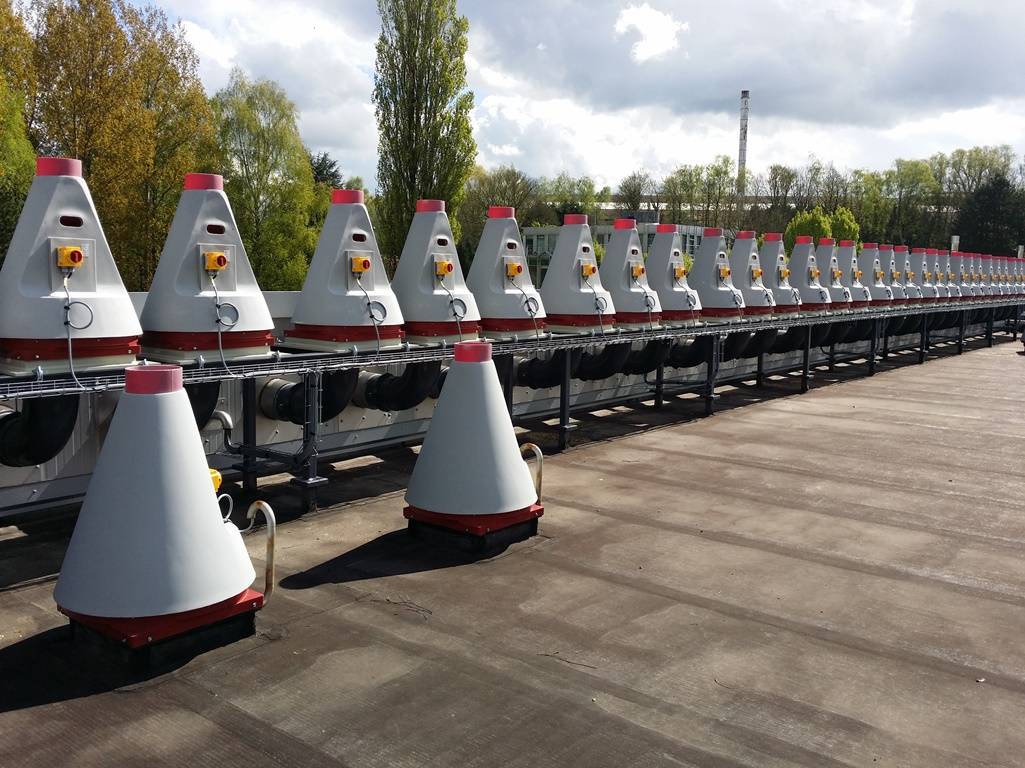

  • roof unit electric fan (with attachable base plate).

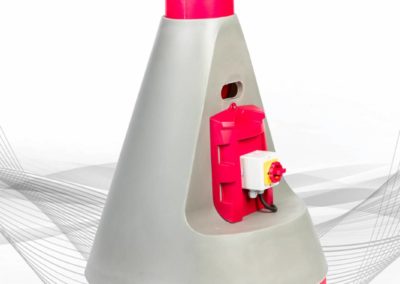

Protection against corrosion

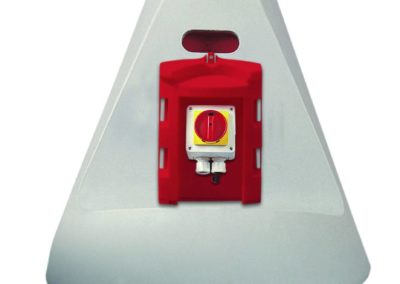

The motor is protected against corrosive fumes and climatic changes by a covering. Both casing and propeller are made from polypropylene.
Basic measurements of electric fan


Parameter Calibre
A 735
B 930
D 200
E 60
F 240
H 70
I 90
J 60
K 130
M 540×540
X 330
Y 300
Z 430

Weight of motor (according to type): 6,0 – 15,7 kg

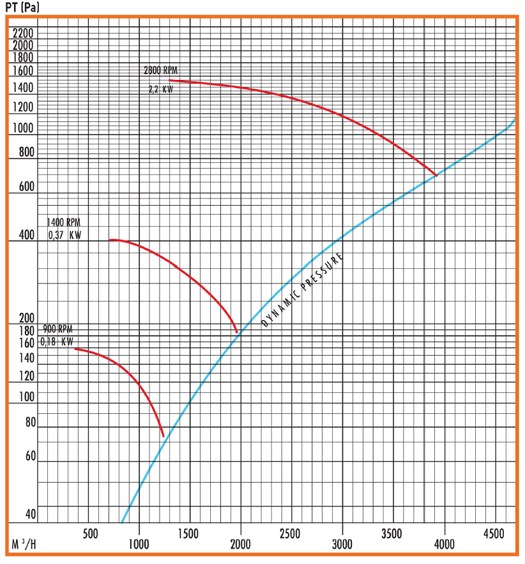

Performance parameters
