Accessories for electric fans
All measurements are given in millimetres, unless otherwise stated [mm].
Accessories are also available for use in Ex areas. The range of accessories designed for the Ex environment can be found in our price list.
Enclosed pedestal
The enclosed pedestal ( made from polypropylene) for electric fans type SEAT protects the motor from the effects of atmospheric changes and aggressive environments. It is suitable for use both inside and outside of premises.
Measurements
| Electric fan | Typ | X | Z | Y | Z1 | Y1 |
|---|---|---|---|---|---|---|
| SEAT 15/20/25, STORM 12/14 | 450 | 450 | 425 | 340 | 318 | 270 |
| SEAT 25 2P/30, STORM 16 | 550 | 550 | 425 | 340 | 318 | 270 |
| SEAT 35 | 700 | 715 | 585 | 505 | 520 | 430 |
Metal stand
Standard metal stand made of steel. Used for mounting fans indoor. Different sizes available according to fan.
Measurements
| Electric fan | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| SEAT 15/20, STORM 12/14 | 190 | 180 | 320 | 20 | 160 | 240 |
| SEAT 25, STORM 16 | 190 | 180 | 400 | 20 | 160 | 300 |
| SEAT 30 | 200 | 240 | 440 | 20 | 220 | 350 |
| SEAT 35 | 300 | 350 | 600 | 20 | 310 | 468 |
Exhaust cap with grid
Exhaust cap with grid prevents intrusion of animals and other foreign bodies. It is placed onto electric fan outlet.
Exhaust cap is made from PP.
Measurements
| D | L |
|---|---|
| 125 | 240 |
| 160 | 340 |
| 200 | 370 |
| 250 | 420 |
| 315 | – |
Couplings
Couplings are made from PVC.
Measurements
| Small calibre | Large calibre |
|---|---|
| 75 | 90 |
| 90 | 125 |
| 125 | 160 |
| 125 | 200 |
| 160 | 200 |
| 200 | 250 |
| 200 | 315 |
| 250 | 315 |
| 315 | 400 |
Backflow valve
Backflow valve prevents backflow of air. Made from PVC.
Measurements
| D | L |
|---|---|
| 125 | 220 |
| 160 | 260 |
| 200 | 270 |
| 250 | 315 |
| 315 | 350 |
Regulation damper
Regulation damper moderates air flow through the duct. Damper is made of PVC.
Measurements
| D | L |
|---|---|
| 125 | 190 |
| 160 | 205 |
| 200 | 220 |
| 250 | 225 |
| 315 | 230 |
Flexible sleeves, jubilee clips, vibration insulators
Sleeves are made from PVC. Clips are made from stainless steel.
Measurements
| Diameter |
|---|
| 125 |
| 135 |
| 160 |
| 200 |
| 250 |
| 315 |

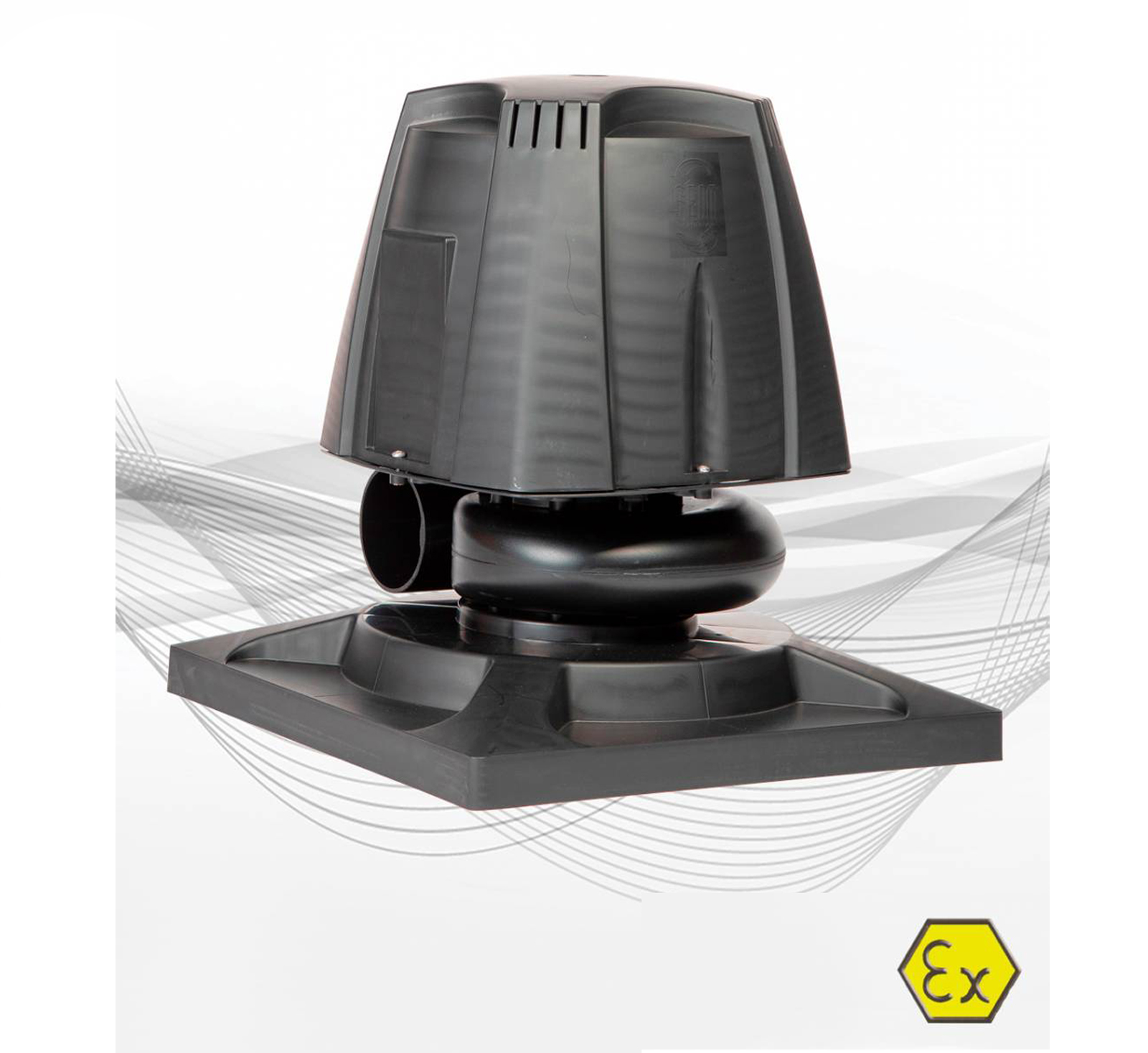

Roof unit
Roof unit
Working unit is electric fan SEAT, supplemented by accessories:
- base plate,
- motor casing,
- switch,
- exhaust cap with grid.
The fans motor is totally covered and therefore protected against bad weather conditions.
Basic measurements of roof units
| SEAT 15 | 550 | 560 | 560 | 125 | 547×547 int. |
| SEAT 20 | 560 | 600 | 560 | 160 | 547×547 int. |
| SEAT 25 | 590 | 680 | 595 | 200 | 547×547 int. |
| SEAT 30 | 680 | 780 | 650 | 250 | 547×547 int. |
| SEAT 35 | 880 | 950 | 850 | 315 | 700×700 int. |
